Product Title
DC axial fan-6314 / 2TDHHP-015
Product Category
Air Conditioning & Fans
Send Inquiry
Description
Products Description

Introducing

This DC axial fan offers exceptional durability and is designed to last long. The use of high-quality materials and advanced technology ensures that it can withstand extreme conditions and perform efficiently for longer periods.

The fan offers superior cooling capabilities with its high air flow rate of 10.8m³/min and fast rotation of 2600 rpm. It is particularly suited to the cooling of electronic equipment, ventilation in factories or other industrial buildings, and any other high-performance cooling applications.

Some of the key advantages of our DC axial fan include its low noise levels, allowing for quiet operation, and its low power consumption, making it a cost-effective cooling solution for any application.

Our DC axial fan-6314/2TDHHP is an ideal choice for those looking for a durable and high-performing cooling solution. It incorporates advanced technology to offer superior performance, low noise levels, and low power consumption, making it the perfect choice for industrial or electronic equipment cooling applications.

In conclusion, whether you need to cool electronic equipment or ventilate an industrial building, the DC axial fan-6314/2TDHHP is the perfect choice for performance, reliability, and cost-effectiveness. Choose our DC axial fan for a quality cooling solution today!

Technical Description

General description

3-phase fan drive with very smooth operation and high efficiency Housing with grounding lug for M4 x 8 screw (Torx) Power consumption when wide open; these values may be considerably higher at the operating point.

Weight

0.91 kg

Dimensions

172 x 160 x 51 mm

Impeller material

Glass-fiber reinforced PA plastic

Housing material

Die-cast aluminum

Airflow direction

Exhaust over struts

Direction of rotation

Counterclockwise, viewed toward rotor

Bearing

Ball bearing

Service life L10 at 40 °C

62500 h

Service life L10 at maximum temperature

25000 h

Cable

with leads AWG 18, 20 or AWG 22, TR 64, speed signal and control input AWG 22

Nominal data

Type of voltage



DC

Nominal voltage

in V

24

Nominal voltage range

in V

16 .. 36

Speed

in min-1

7000

Power input

in W

67

Min. ambient temperature

in °C

-20

Max. ambient temperature

in °C

75

Air flow

in m³/h

710

Sound power level

in B

7,9

Sound pressure level

in dB(A)

69

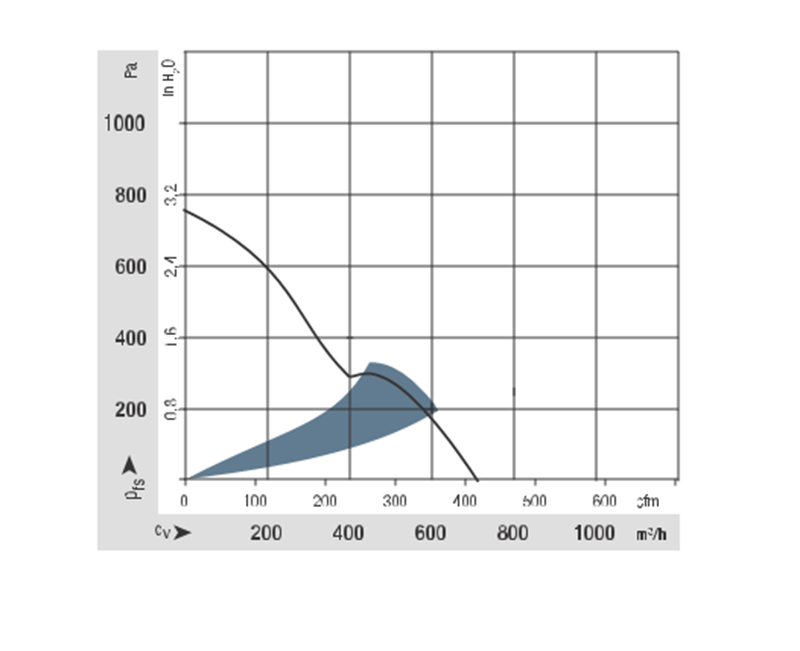

Curves

1

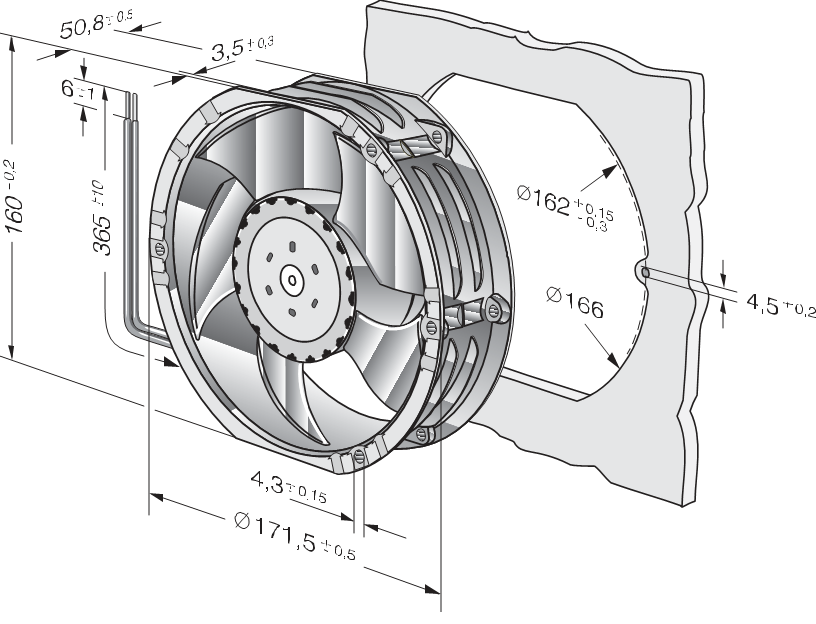

Drawing

2

Product drawing
