Product overview

Product Title
DC axial fan-6314/2HP
Product Category
Air Conditioning & Fans
Send Inquiry
Description
Products Description

Introducing

One of the main features of this axial fan is its high-performance motor, which provides powerful and consistent airflow to ensure maximum cooling efficiency. Additionally, its compact and lightweight design makes it easy to install and maintain, making it ideal for any application that requires efficient cooling.

Another advantage of this fan is its low-noise operation, enabling quiet and efficient cooling even in noise-sensitive environments. This makes it an excellent choice for server rooms, data centers and other applications where noise levels need to be kept to a minimum.

Additionally, this fan is equipped with numerous safety features to ensure reliable and consistent operation. These features include overload protection, thermal protection, and a fail-safe mechanism that will shut down the fan in the event of a failure.

Overall, if you need a reliable and efficient axial fan that can provide optimum cooling performance in a wide range of applications, then the ebmpapst axial fan is the perfect choice for you. So why wait? Order today and experience the ultimate in performance, reliability and efficiency!

Technical Description

General description

Power consumption when wide open; these values may be considerably higher at the operating point.

Weight

0.91 kg

Dimensions

Ø 172 x 51 mm

Impeller material

Glass-fiber reinforced PA plastic

Housing material

Die-cast aluminum

Airflow direction

Exhaust over struts

Direction of rotation

Counterclockwise, viewed toward rotor

Bearing

Ball bearing

Service life L10 at 40 °C

77500 h

Service life L10 at maximum temperature

42500 h

Cable

with leads AWG 22, TR 64

Nominal data

Type of voltage



DC

Nominal voltage

in V

24

Nominal voltage range

in V

16 .. 30

Speed

in min-1

5000

Power input

in W

31

Min. ambient temperature

in °C

-20

Max. ambient temperature

in °C

65

Air flow

in m³/h

545

Sound power level

in B

6,9

Sound pressure level

in dB(A)

58

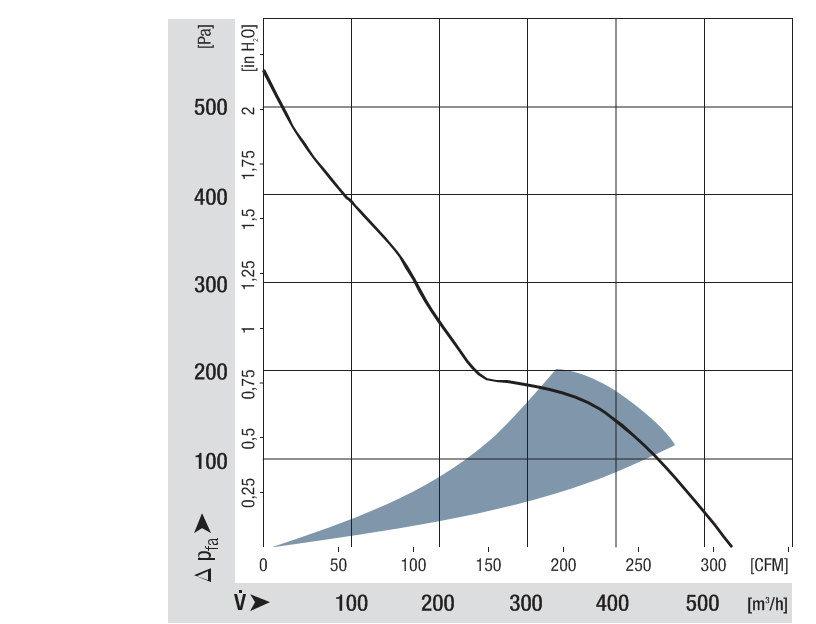

Curves

1

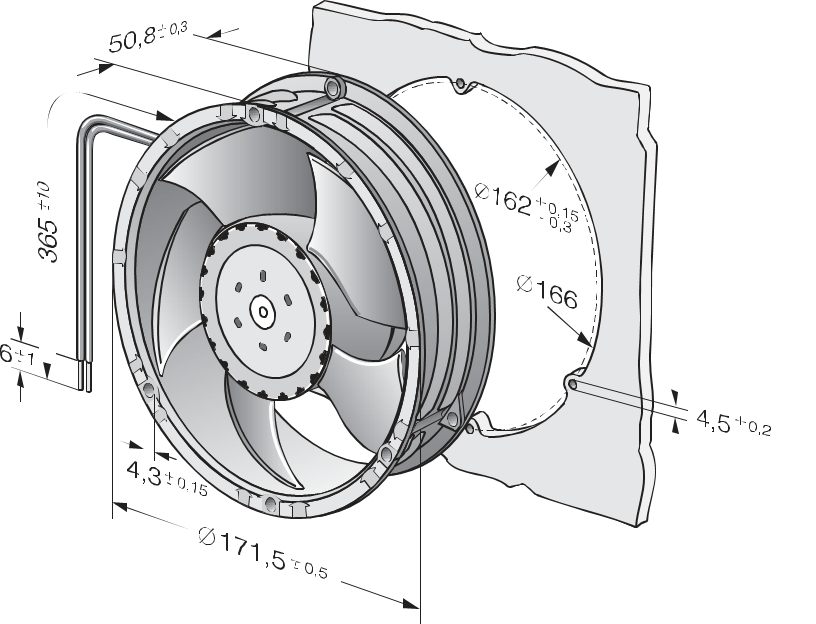

Product drawing

Drawing

2

Product drawing
