Product overview

Product Title
AC axial compact fan-3556
Product Category
Air Conditioning & Fans
Send Inquiry
Description
Products Description

Technical Description

Weight

0.420 kg

Dimensions

92 x 92 x 38 mm

Impeller material

Sheet steel, painted black

Housing material

Die-cast aluminum

Part no.

9244014710

Airflow direction

Exhaust over struts

Direction of rotation

Clockwise, viewed toward rotor

Bearing

Ball bearing

Service life L10 at 40 °C

60000 h

Service life L10 at maximum temperature

20000 h

Cable

with 2 leads AWG 18 Grounding lug M4 x 8

Motor protection

Protected from overload by impedance protection

Approval

VDE, CSA, UL, CE

Nominal data

Phase



1~

Type of voltage



AC

Nominal voltage

in V

230

Frequency

in Hz

50

Speed

in min-1

2400

Power input

in W

8,5

Min. ambient temperature

in °C

-40

Max. ambient temperature

in °C

90

Air flow

in m³/h

67

Sound power level

in B

4,5

Sound pressure level

in dB(A)

33

Introducing

The 3556 model AC Axial Flow Fan has several significant features. First, it is powered by AC power, which is convenient for access to various standard power systems and suitable for a variety of applications. Secondly, the fan has a moderate blade diameter and a speed of up to 2400 rpm, which can form a strong airflow in a short time and dissipate heat quickly. In addition, the fan also uses an aluminum alloy shell, which is sturdy and durable, and has excellent heat dissipation performance.

In short, the AC Axial Flow Fan-3556 is an excellent, stable and reliable heat dissipation device, which is widely used in electronics, electrical, comprehensive and other fields, providing stable heat dissipation guarantee for various equipment.

Drawing

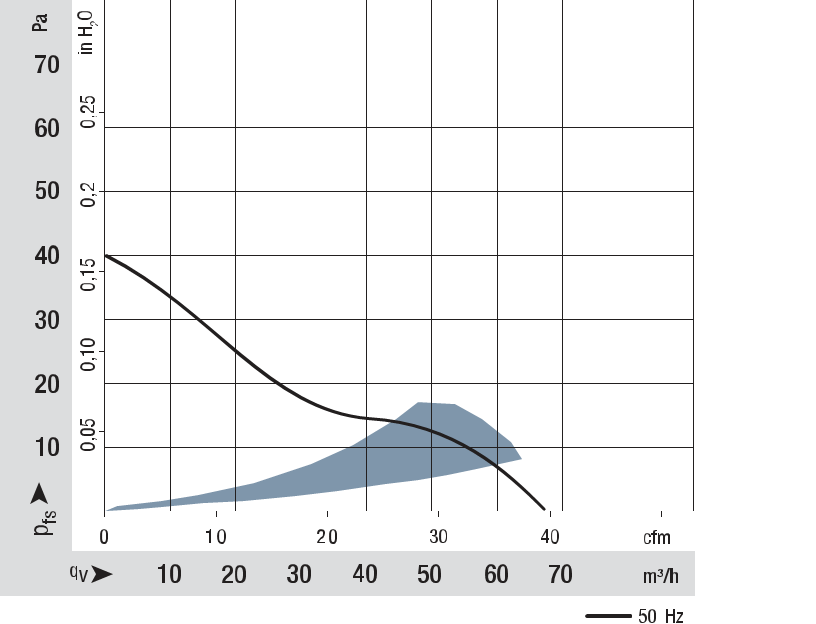

3556

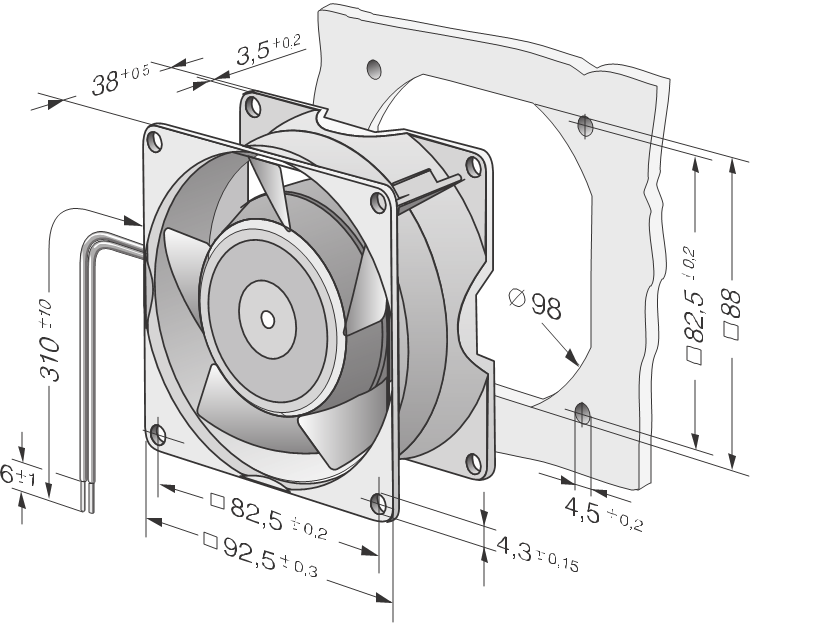

3556-1
