Description
Products Description
Technical Description
|
Weight |
0.100 kg |
|
Dimensions |
92 x 92 x 25 mm |
|
Impeller material |
Glass-fiber reinforced PA plastic |
|
Housing material |
Glass-fiber reinforced PBT plastic |
|
Airflow direction |
Exhaust over struts |
|
Direction of rotation |
Counterclockwise, viewed toward rotor |
|
Bearing |
Sintec sleeve bearing |
|
Service life L10 at 40 °C |
70000 h |
|
Service life L10 at maximum temperature |
35000 h |
|
Cable |
Leads AWG 24, TR 64, stripped and tin-plated. |
|
Motor protection |
Protection against reverse polarity and blocked rotor. |
|
Approval |
VDE, CSA, UL |
|
Option |
Speed signal |
Nominal data
|
Type of voltage |
|
DC |
|
Nominal voltage |
in V |
24 |
|
Nominal voltage range |
in V |
18 .. 26 |
|
Speed |
in min-1 |
3000 |
|
Power input |
in W |
3 |
|
Min. ambient temperature |
in °C |
-20 |
|
Max. ambient temperature |
in °C |
70 |
|
Air flow |
in m³/h |
94 |
|
Sound power level |
in B |
5 |
|
Sound pressure level |
in dB(A) |
36 |

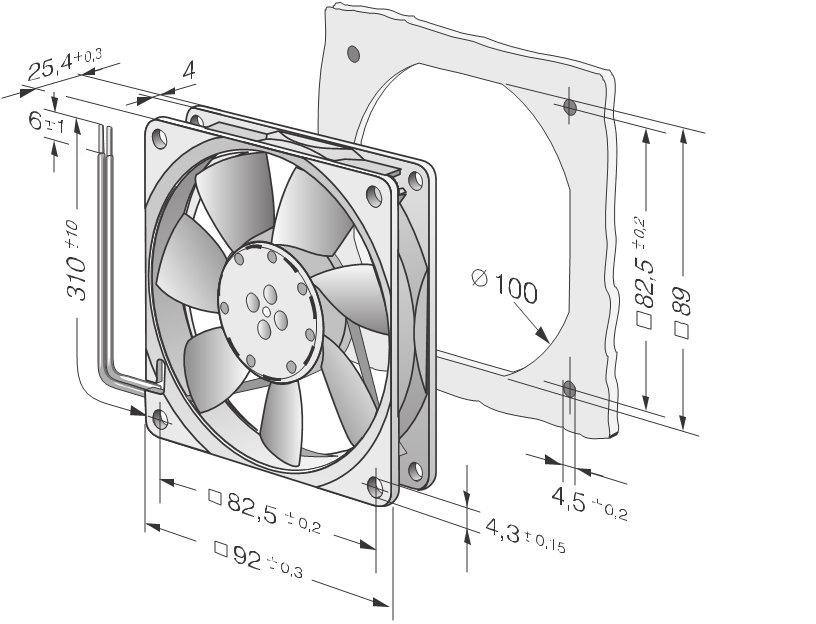

Drawing
