Description
Products Description
Technical Description
|
Weight |
0.085 kg |
|
Dimensions |
60 x 60 x 25 mm |
|
Impeller material |
glass-fiber reinforced PA plastic |
|
Housing material |
glass-fiber reinforced PBT plastic |
|
Airflow direction |
Exhaust over struts |
|
Direction of rotation |
Clockwise, viewed toward rotor |
|
Bearing |
Ball bearing |
|
Service life L10 at 40 °C |
65000 h |
|
Service life L10 at maximum temperature |
32500 h |
|
Cable |
Leads AWG 22, TR 64, stripped and tin-plated. |
|
Motor protection |
Protection against reverse polarity and blocked rotor. |
|
Locked-rotor protection |
with electronic locked-rotor and overload protection |
|
Approval |
VDE, CSA, UL, CE |
|
Option |
Possible custom designs: Speed signal Go / No-go alarm Alarm with speed limit External temperature sensor Internal temperature sensor PWM control input Analog control input Moisture protection |
Nominal data
|
Type of voltage |
|
DC |
|
Nominal voltage |
in V |
24 |
|
Nominal voltage range |
in V |
18 .. 28 |
|
Speed |
in min-1 |
8200 |
|
Power input |
in W |
3,6 |
|
Min. ambient temperature |
in °C |
-20 |
|
Max. ambient temperature |
in °C |
70 |
|
Air flow |
in m³/h |
56 |
|
Sound power level |
in B |
5,6 |
|
Sound pressure level |
in dB(A) |
43 |

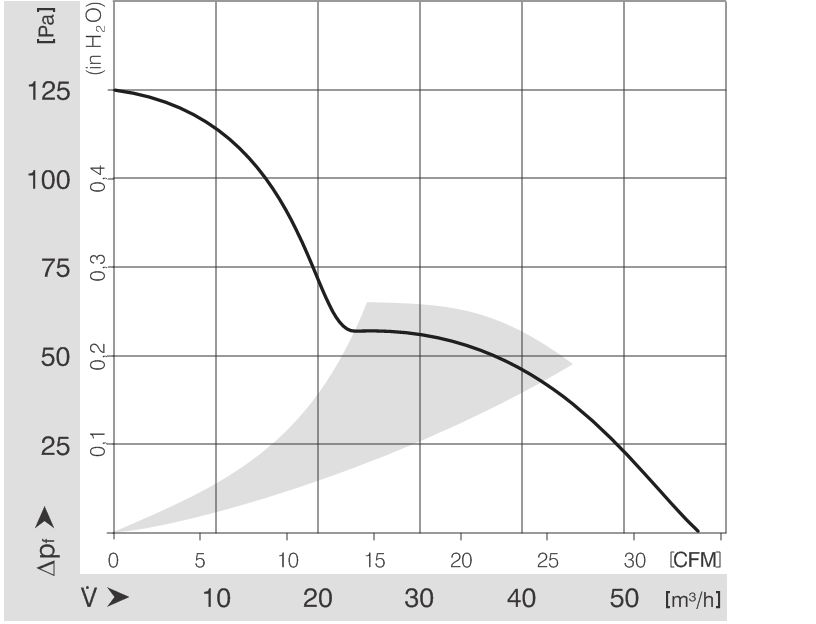

Curves

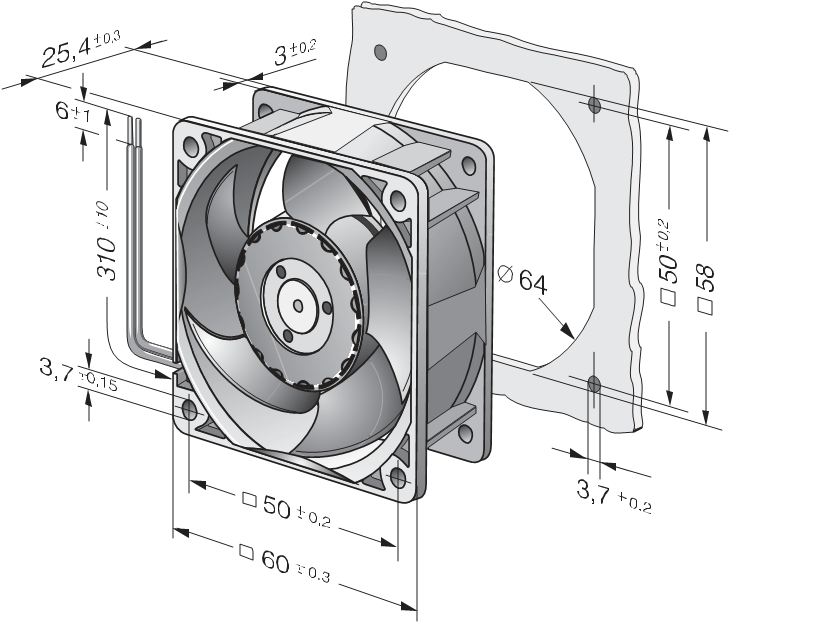

Drawing
