Description

Weight	1.06 kg
Motor size	55

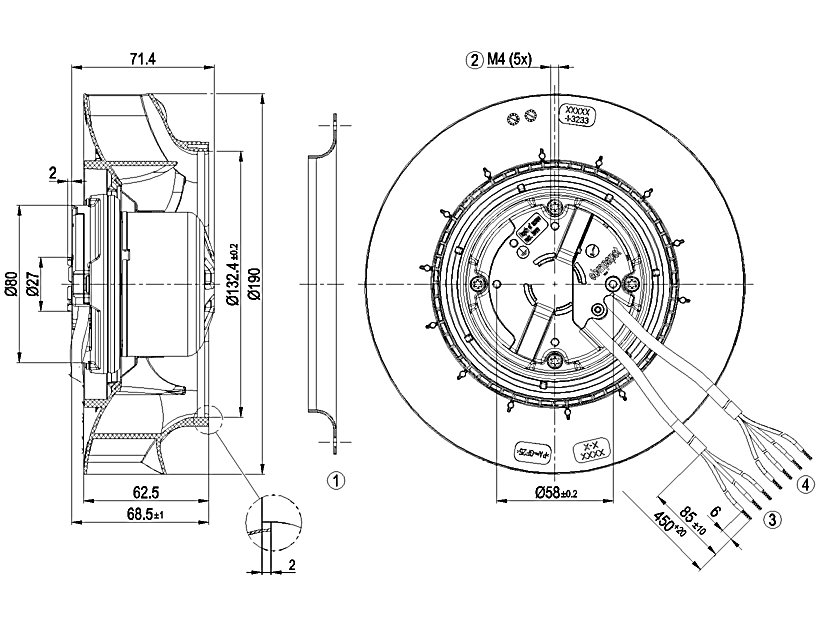

Size	190 mm
Rotor surface	Thick-film passivated
Electronics housing material	Die-cast aluminum
Impeller material	PP plastic
Number of blades	7
Direction of rotation	Clockwise, viewed toward rotor
Degree of protection	IP54
Insulation class	"B"
Moisture (F) / Environmental (H) protection class	H1
Max. permitted ambient temp. for motor (transport/storage)	+ 80 °C
Min. permitted ambient temp. for motor (transport/storage)	- 40 °C
Installation position	Any
Condensation drainage holes	None, open rotor
Mode	S1
Motor bearing	Ball bearing
Technical features	- Output 10 VDC, max. 1.1 mA - Tach output - Power limiter - Motor current limitation - Soft start - Control input 0-10 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Overvoltage detection - Thermal overload protection for electronics/motor - Line undervoltage detection
EMC immunity to interference	According to EN 61000-6-2 (industrial environment)
EMC circuit feedback	According to EN 61000-3-2/3
EMC interference emission	According to EN 61000-6-3 (household environment)
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system)	<= 3,5 mA
Motor protection	Electronic motor protection
with cable	Variable
Protection class	I (with customer connection of protective earth)
Conformity with standards	EN 60335-1 / UKCA / CE
Approval	UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 + CAN/CSA-E60730-1 / CCC

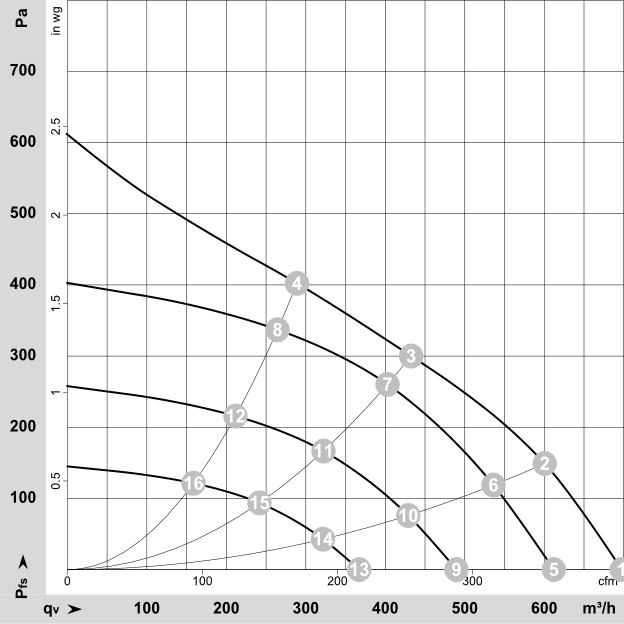

Air flow 50 Hz

	n	Pe	I	LpAin
	in min-1	in W	in A	in dB(A)
1	3419	75	0,67	66
10	2400	29	0,26	54
11	2400	35	0,31	52
12	2400	33	0,29	52
13	1800	11	0,10	51
14	1800	12	0,11	47
15	1800	15	0,13	45
16	1800	14	0,12	45
2	3362	79	0,70	60
3	3200	83	0,75	58
4	3277	83	0,73	60
5	3000	51	0,45	64
6	3000	56	0,50	60
7	3000	69	0,60	57
8	3000	64	0,56	58
9	2400	26	0,23	59
